Rago Fabrication Toyota 4runner Rock Sliders Bolt On 2010-2022
The Rago Fabrication Rock Sliders were engineered from the ground up to provide superior strength and rigidity for the most extreme rock crawling environments. Our design is streamlined, low profile, and flows nicely with the factory body lines.

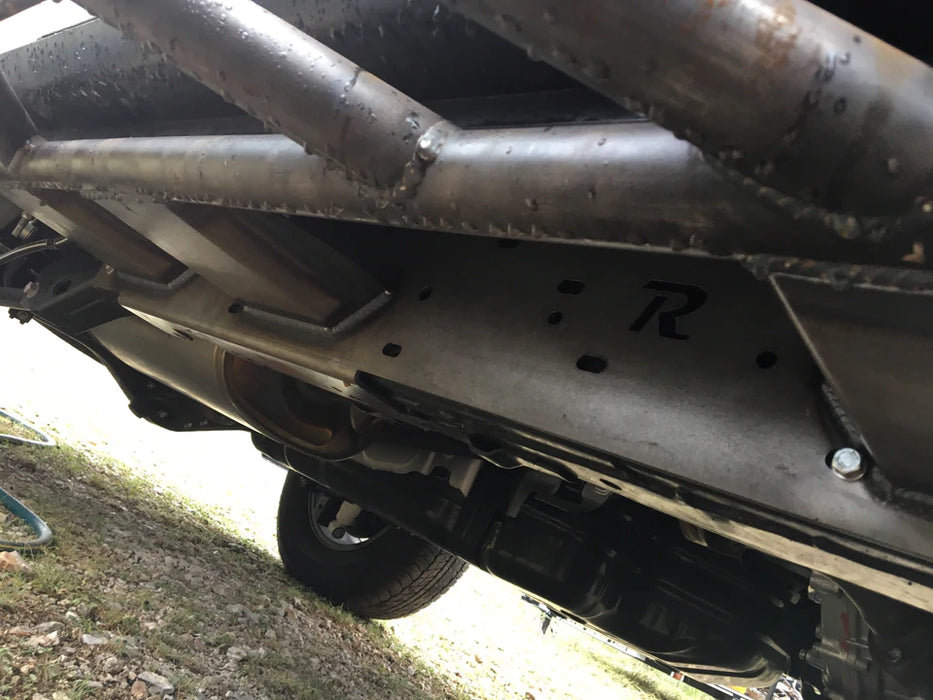

We start with 1.750 DOM tubing as standard on all our rock sliders for extra strength because we believe seam walled tubing, although sufficient, will not stand up to the extreme off-road environment. The main plate is 3/16 pickled and oiled steel to provide the perfect platform for our fully boxed supports.
These are no ordinary pieces of metal that support our sliders-they are bent at a 45 degree angle on both ends that allows more support for rotational loads and is over 8 inches wide in three different locations. To top it off we have a u bent gusset that supports every boxed piece for even more rotational strength.

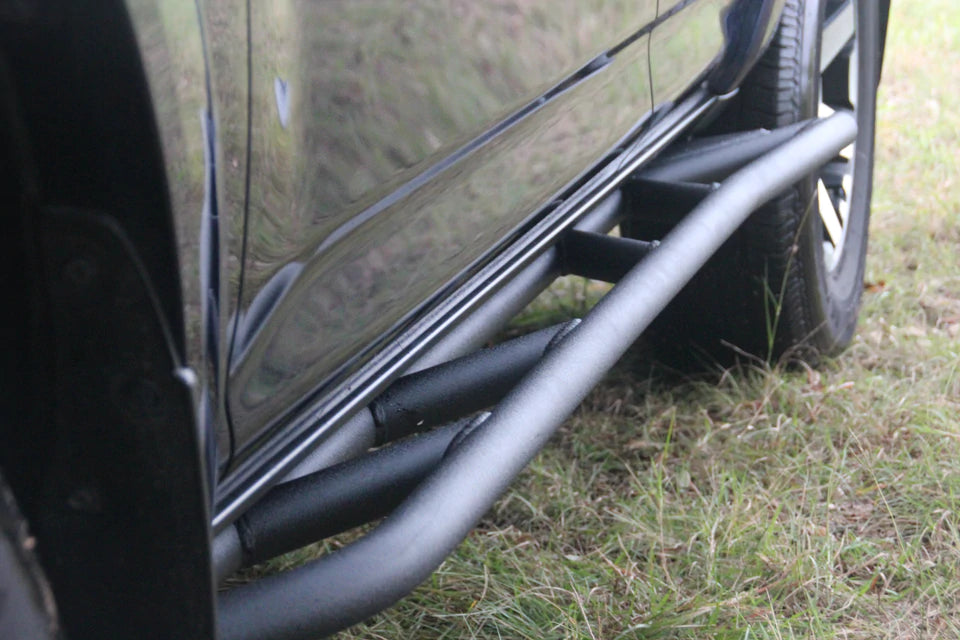

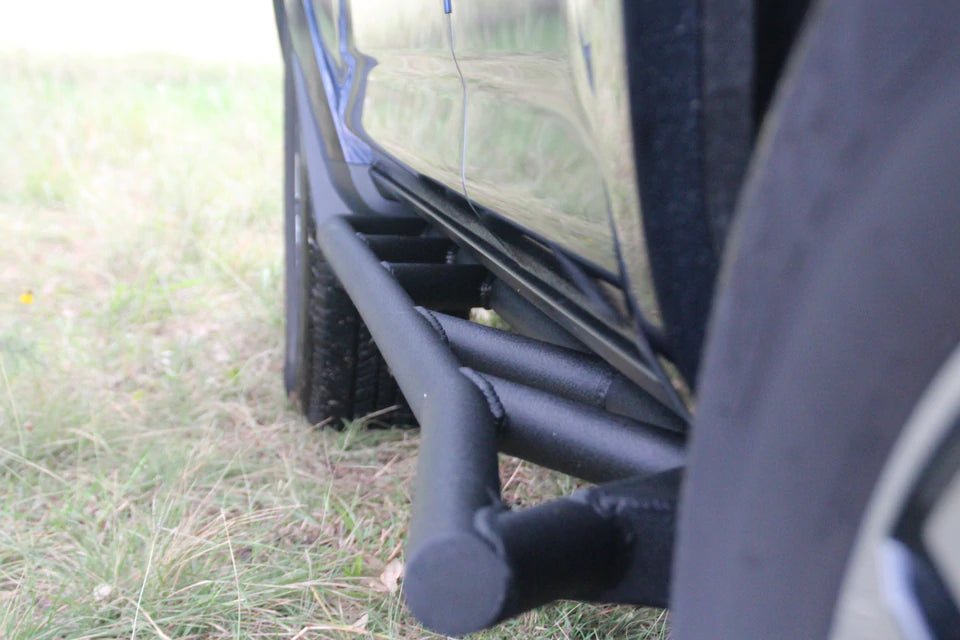

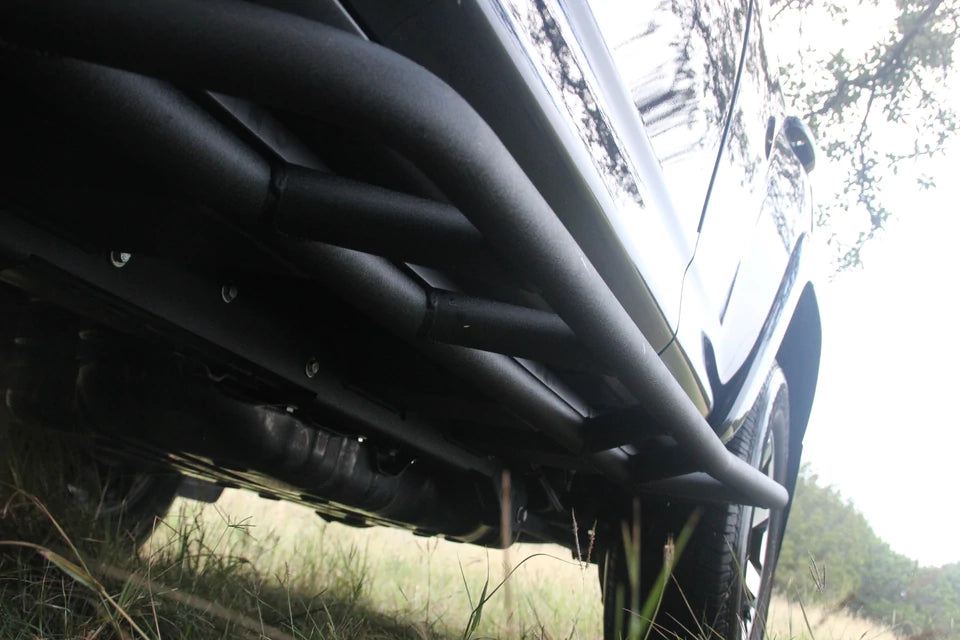

Our tubing design is low enough to be used as a step and incorporates a kick out near the rear tire to push the 4Runner past obstacles that may damage the body. We also designed them to be wide enough to protect the body from side damage while on the trails.

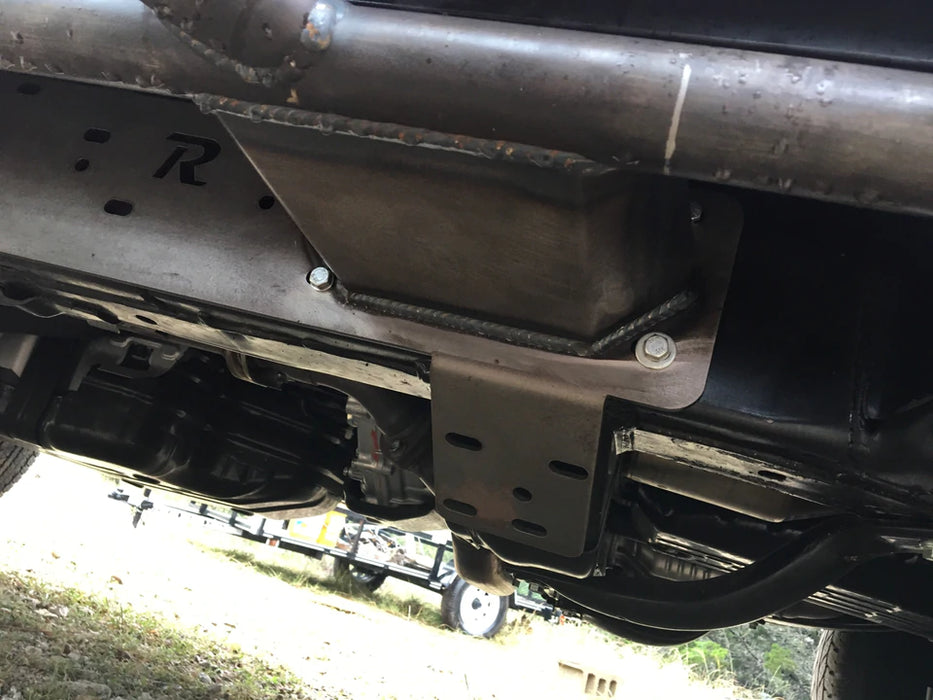

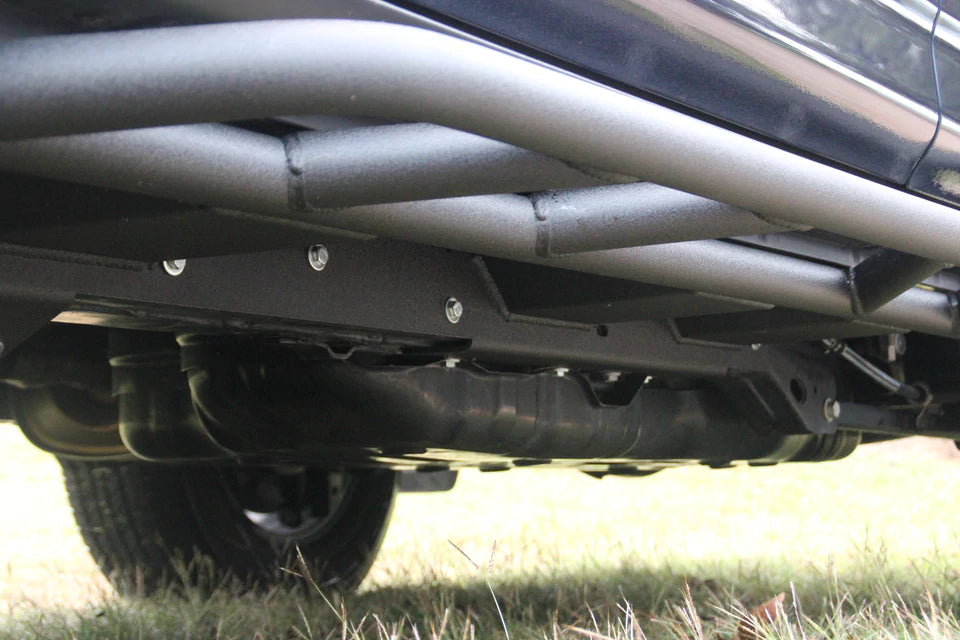

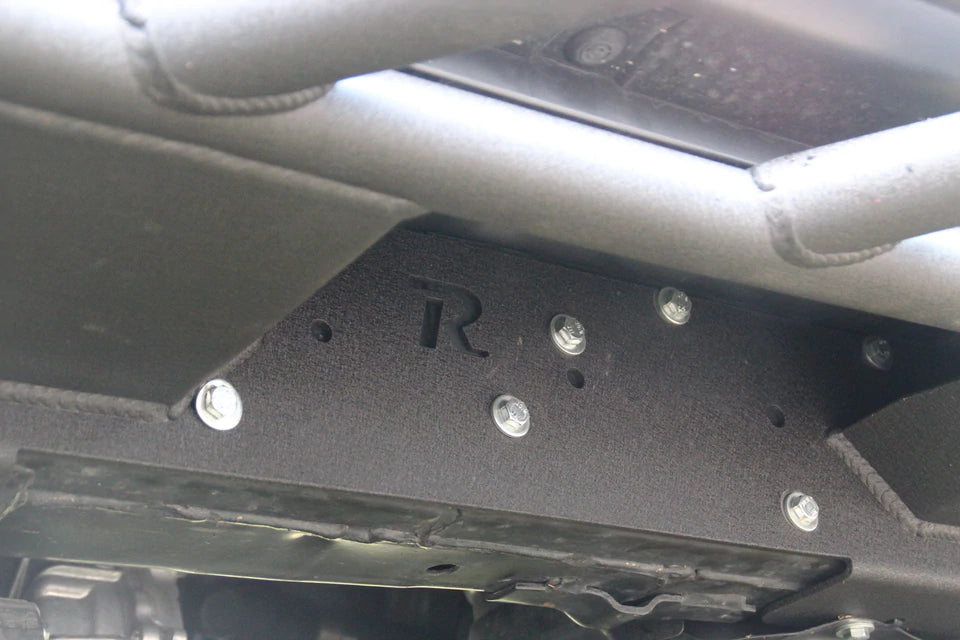

Our rock sliders are bolt on using grade 8 bolts on all factory bolt locations. We also went the extra mile and designed our sliders to bolt completely through the frame in 4 locations throughout the main plate using 1/2 inch as well as 3/8 inch bolts.
Bare Raw Metal, None KDSS.
